Triple layer filters from 1 – 2 μm | EDM Sales & Supplies, Inc.

Triple layer filters from 1 – 2 μm

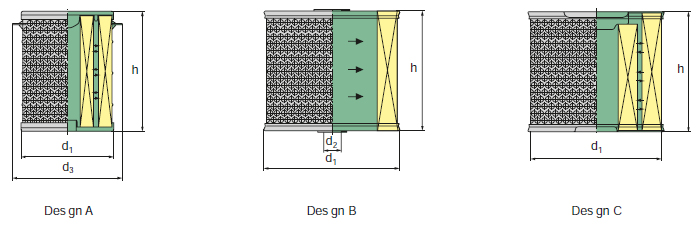

Order no.	Design	Filter surface area in cm² [in ft²]	Dimensions in mm [dimensions in inches]				Flow direction	Connection thread
Order no.	Design	Filter surface area in cm² [in ft²]	d₁	d₂	d₃	h	Flow direction	Connection thread
H 34 1070/1 ¹⁾	B	92 000 [99]	340 [13.4]	47.5 [1.8]	–	300 [11.8]	inside to outside	–
H 34 1380/1 ¹⁾	C	142 020 [153]	340 [13.4]	–	–	300 [11.8]	inside to outside	G 3/4’’
H 34 1390/1 ²⁾	A	135 000 [145]	340 [13.4]	–	404 [15.9]	300 [11.8]	inside to outside	G 3/4’’
