Material: H-13 Hotwork Die Steel
Core Hardness: 40-45 RC
Surface Harness: Ion Nitrided to 65-74 Rc

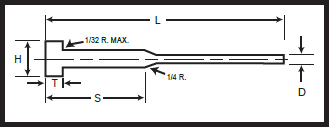

| Pin Diameter (D) | : | -0.0003 /-0.0006 |
| Shoulder Diameter (H) | : | +0.000/-0.003 |
| Head Diameter (H) | : | +0.000/-0.010 |
| Head Thickness (T) | : | +0.000/-0.002 |
| Length (L) | : | +.062/-.000 |
| D | H | T | S | L-6 | L-10 | L-14 | |
| Pin Dia |
Head Dia |
Head Thick |
Shldr Length |
‘D’ STD |
‘D’ STD |
‘D’ 0.05 Over-Sized |
‘D’ STD |
| 1/32 | 1/4 | 1/8 | 1/2 2 |
EP03L06S EP03L06 |
– – |
– – |
– – |
| 3/64 | 1/4 | 1/8 | 1/2 2 |
EP04L06S EP04L06 |
EP04L10S EP04L10 |
EP04L105S EP04L105 |
– EP04L14 |
| 1/16 | 1/4 | 1/8 | 1/2 2 |
EP06L06S EP06L06 |
EP06L10S EP04L10 |
EP06L105S EP06L105 |
– EP06L14 |
| 5/164 | 1/4 | 1/8 | 1/2 2 |
EP07L06S EP07L06 |
EP07L10S EP04L10 |
EP07L105S EP07L105 |
– EP07L14 |
| 3/32 | 1/4 | 1/8 | 1/2 2 |
EP09L06S EP09L06 |
EP09L10S EP04L10 |
EP09L105S EP09L105 |
– EP09L14 |
| 7/64 | 1/4 | 1/8 | 1/2 2 |
EP10L06S EP10L06 |
EP10L10S EP10L10 |
EP10L105S EP10L105 |
– EP10L14 |
