Standard Core Pins

Product Description

Material: H-13 HOTWORK DIE STEEL
Standard Hardness: CPS 30 – 35 Rc
High Hardness: CPH 50 – 55 Rc

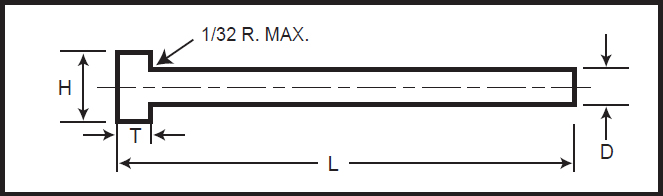

Tolerances

Pin Diameter (D)	:	-0.001 /-0.000
Head Diameter (H)	:	+0.000/-0.010
Head Thickness (T)	:	+0.000/-0.002
Length (L)	:	+.030/-.000

Standard Hardness

D	H	T	L-3	L-6”	L-10”
Pin Dia	Head Dia	Head Thick	ITEM NUMBER
3/32 7/64 1/8	1/4 1/4 1/4	1/8 1/8 1/8	CPS09L03 CPS10L03 CPS12L03	CPS09L06 CPS10L06 CPS12L06	CPS09L10 CPS10L10 CPS12L10
9/64 5/32 11/64	1/4 9/32 11/32	1/8 5/32 3/16	CPS14L03 CPS15L03 CPS17L03	CPS14L06 CPS15L06 CPS17L06	CPS14L10 CPS15L10 CPS17L10
3/16 13/64 7/32	3/8 3/8 13/32	3/16 3/16 3/16	CPS18L03 CPS20L03 CPS21L03	CPS18L06 CPS20L06 CPS21L06	CPS18L10 CPS20L10 CPS21L10
1/4 9/32 5/16	7/16 7/16 1/2	3/16 1/4 1/4	CPS25L03 CPS28L03 CPS31L03	CPS25L06 CPS28L06 CPS31L06	CPS25L10 CPS28L10 CPS31L10
11/32 3/8 13/32	9/16 5/811/16	1/4 1/4 1/4	CPS34L03 CPS37L03 CPS40L03	CPS34L06 CPS37L06 CPS40L06	CPS34L10 CPS37L10 CPS40L10
7/16 15/32 1/2	11/16 3/4 3/4	1/4 1/4 1/4	CPS43L03 CPS46L03 CPS50L03	CPS43L06 CPS46L06 CPS50L06	CPS43L10 CPS46L10 CPS50L10
9/16 5/8 3/4	13/16 7/8 1”	– – –	CPS56L03 CPS62L03 CPS75L03	CPS56L06 CPS62L06 CPS75L06	CPS56L10 CPS62L10 CPS75L10

High Hardness

D	H	T	L-3	L-6	L-10
Pin Dia	Head Dia	Head Thick	ITEM NUMBER
3/32 7/64 1/8	1/4 1/4 1/4	1/8 1/8 1/8	CPH09L03 CPH10L03 CPH12L03	CPH09L06 CPH10L06 CPH12L06	CPH09L10 CPH10L10 CPH12L10
9/64 5/32 11/64	1/4 9/32 11/32	1/8 5/32 3/16	CPH14L03 CPH15L03 CPH17L03	CPH14L06 CPH15L06 CPH17L06	CPH14L10 CPH15L10 CPH17L10
3/16 13/64 7/32	3/8 3/8 13/32	3/16 3/16 3/16	CPH18L03 CPH20L03 CPH21L03	CPH18L06 CPH20L06 CPH21L06	CPH18L10 CPH20L10 CPH21L10
1/4 9/32 5/16	7/16 7/16 1/2	3/16 1/4 1/4	CPH25L03 CPH28L03 CPH31L03	CPH25L06 CPH28L06 CPH31L06	CPH25L10 CPH28L10 CPH31L10
11/32 3/8 13/32	9/16 5/8 11/16	1/4 1/4 1/4	CPH34L03 CPH37L03 CPH40L03	CPH34L06 CPH37L06 CPH40L06	CPH34L10 CPH37L10 CPH40L10
7/16 15/32 1/2	11/16 3/4 3/4	1/4 1/4 1/4	CPH43L03 CPH46L03 CPH50L03	CPH43L06 CPH46L06 CPH50L06	CPH43L10 CPH46L10 CPH50L10
9/16 5/8 3/4	13/16 7/8 1”	– – –	CPH56L03 CPH62L03 CPH75L03	CPH56L06 CPH62L06 CPH75L06	CPH56L10 CPH62L10 CPH75L10
