10mm For shot weights up to 40g S1 Series

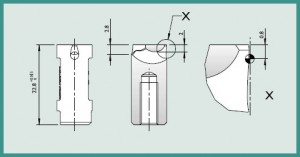

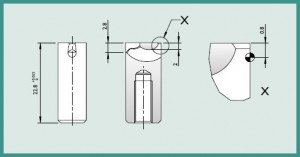

Manufactured with a flat gate point allowing minor contour machining at the gate point.

Product Description

a	b	~40 HRC	~60 HRC
0,8	n/a	TGR10-08-S1-U	TGR10-08-S1-H
1,2	n/a	TGR10-12-S1-U	TGR10-12-S1-H
1,6	n/a	TGR10-16-S1-U	TGR10-16-S1-H

S2 Series

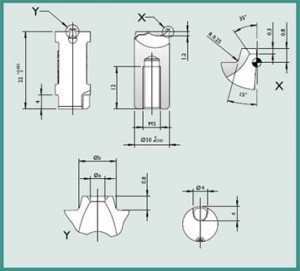

Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.

S2 Series

a	b	~40 HRC	~60 HRC
0,8	2,2	TGR10-08-S2-U	TGR10-08-S2-H
1,2	2,6	TGR10-12-S2-U	TGR10-12-S2-H
1,6	3,0	TGR10-16-S2-U	TGR10-16-S2-H

Cashew Gate Inserts 10mm For shot weights up to 40g

S1 Series

Manufactured with a flat gate point allowing minor contour machining at the gate point.

a	b	~40 HRC	~60 HRC
0,8	n/a	TGS10-08-S1-U	TGS10-08-S1-H
1,2	n/a	TGS10-12-S1-U	TGS10-12-S1-H
1,6	n/a	TGS10-16-S1-U	TGS10-16-S1-H

S2 Series

Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.

S2 Series

a	b	~40 HRC	~60 HRC
0,8	2,2	TGS10-08-S2-U	TGS10-08-S2-H
1,2	2,6	TGS10-12-S2-U	TGS10-12-S2-H
1,6	3,0	TGS10-16-S2-U	TGS10-16-S2-H
