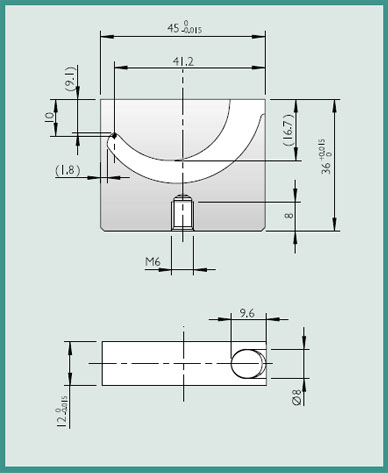

Cashew Gate Inserts Contourable For shot weights up to 1000g

TGC4

The maximum contour depth is 10mm.
Up to 1,5 x 5mm gate point diameter (film gate).
Available in two different hardnesses.
For applications involving brittle materials, we suggest that you contact DMS for an evaluation.

The maximum contour depth is 10mm.
Up to 1,5 x 5mm gate point diameter (film gate).
Available in two different hardnesses.
For applications involving brittle materials, we suggest that you contact DMS for an evaluation.

Product Description

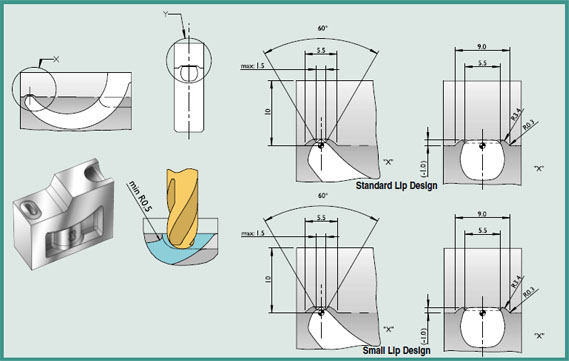

Standard Lip Design

The maximum contour depth is 10mm.
Gate area can be up to 1,5 x 5,5mm.
3D CAD for lip design can be downloaded from the i-mold website.

Small Lip Design

The maximum contour depth is 9,75mm.
Gate area can be up to 1,0 x 5,0mm.
3D CAD for lip design can be downloaded from the i-mold website.

IMPORTANT: Maintain a 0,25mm offset from the CAD reference point!

~40 HRC	~60 HRC
TGC4-U	TGC4-H
