Cashew Gate Inserts Miniflow – GTM

For tunnel gating of medium-to-large components. Supports contouring to a depth of 11,5 mm. Suitable for gate diameters up to 3,5 mm and shot weights up to 1,200 g per insert. The Maxiflow range can be used to process all common plastics, including reinforced types.

Product Description

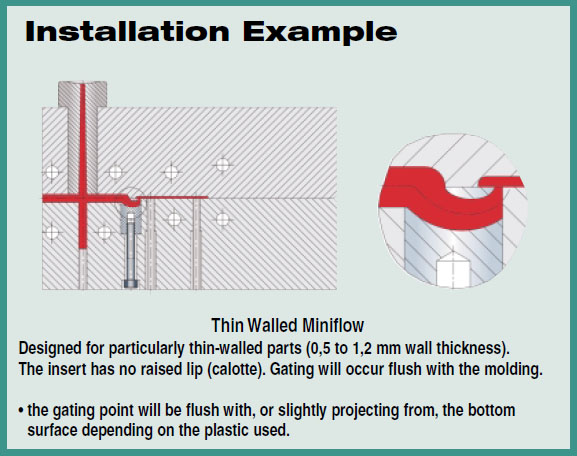

  • For gating of small, thin walled parts.
  • This insert does not have a raised lip (calotte).
  • Suitable for very thin-walled parts.
  • Usable for all thermoplastics including fillers up to 50% glass.
  • All inserts have the gate diameter ‘d2’ molded into them.
Catalog
Number

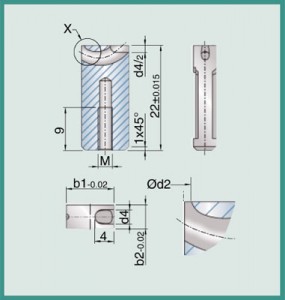

b1 b2 d2 d4 M Viscosity
high
flowability
regular
flowability
low
flowability
GTM-10-05 10 5 0,5 3 3 4 4 3
GTM-10-07 10 5 0,7 3 3 6 5 4
GTM-10-09 10 5 0,9 3 3 12 9 7
GTM-10-11 10 5 1,1 3 3 17 14 9
Weight in grams
