Cashew Gate Inserts Ø 14mm For shot weights up to 140g

S1 Series

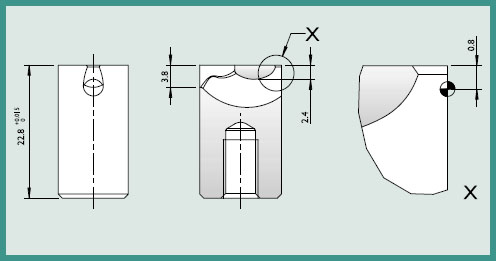

Manufactured with a flat gate point allowing minor contour machining at the gate point

Product Description

a	b	~40 HRC	~60 HRC
1,6	n/a	TGR14-16-S1-U	TGR14-16-S1-H
2,0	n/a	TGR14-20-S1-U	TGR14-20-S1-H
2,4	n/a	TGR14-24-S1-U	TGR14-24-S1-H
2,8	n/a	TGR14-28-S1-U	TGR14-28-S1-H

S2 Series

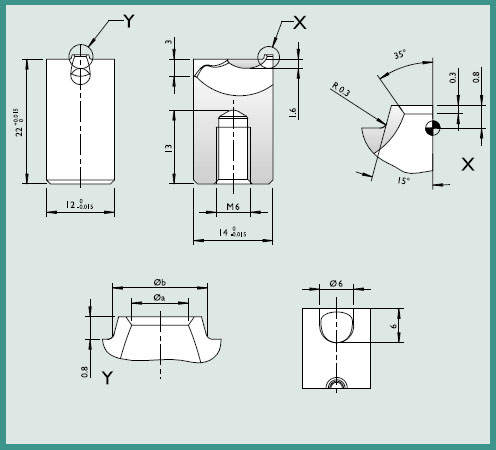

Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.

a	b	~40 HRC	~60 HRC
1,6	3,0	TGR14-16-S2-U	TGR14-16-S2-H
2,0	3,4	TGR14-20-S2-U	TGR14-20-S2-H
2,4	3,8	TGR14-24-S2-U	TGR14-24-S2-H
2,8	4,2	TGR14-28-S2-U	TGR14-28-S2-H

Cashew Gate Inserts 14mm For shot weights up to 140g

S1 Series

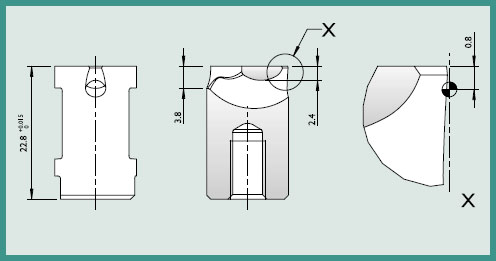

Manufactured with a flat gate point allowing minor contour machining at the gate point.

a	b	~40 HRC	~60 HRC
1,6	n/a	TGS14-16-S1-U	TGS14-16-S1-H
2,0	n/a	TGS14-20-S1-U	TGS14-20-S1-H
2,4	n/a	TGS14-24-S1-U	TGS14-24-S1-H
2,8	n/a	TGS14-28-S1-U	TGS14-28-S1-H

S2 Series

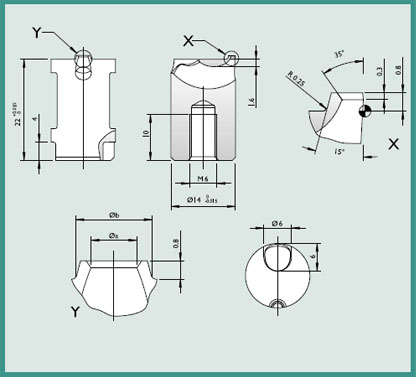

Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.

a	b	~40 HRC	~60 HRC
1,6	3,0	TGS14-16-S2-U	TGS14-16-S2-H
2,0	3,4	TGS14-20-S2-U	TGS14-20-S2-H
2,4	3,8	TGS14-24-S2-U	TGS14-24-S2-H
2,8	4,2	TGS14-28-S2-U	TGS14-28-S2-H
