Front Removable Date Stamps

Economy Series “E”

NOTE: Press fit installation required in mold.

Product Description

INSERT ASSEMBLIES

D	L	12 Months w/arrow	12 Months w arrow/year*	Years/ arrow**	Days/ arrow	Shifts/ arrow	Blank/ arrow
4	8	MO408	MO4 x _ _	A04 x _ _	DA04	SHO4	BLO408
5	8	MO508	MO5 x _ _	AO5 x _ _	DA05	SHO5	BL0508
6	8	MO608	MO6 x _ _	AO6 x _ _	DA06	SH06	BL0608
8	10	MO810	MO8 x _ _	AO8 x _ _	DA08	SH08	BL0810
10	12	MO1012	M10 x _ _	A10 x _ _	DA10	SH10	BL1012
12	14	MO1214	M12 x _ _	A12 x _ _	DA12	SH12	BL1214
16	14	MO1614	M16 x _ _	A16 x _ _	DA16	SH16	BL1614
20	16	MO2016	M20 x _ _	A20 x _ _	DA20	SH20	BL2016

* When ordering add the year required to the part number (M05 x 07)
**When ordering specify beginning year
Material: 420 Stainless; 1.4021;46Hrc+/- 2

Provides part traceability
Maximum working Temperature: 300F
Markings are Laser etched.
Insert changes can be done from parting line
Press fit installation required
Interchangeable with DME Front Removable or Progressive C-series

Replacement Inserts & Bodies

NOTE: Press fit installation required in mold.

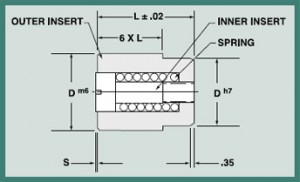

DIMENSIONAL DATA

D(mm) Dia.	E (mm)	L(mm) Length	S(mm) Etch Depth	Tolerance(mm)
D(mm) Dia.	E (mm)	L(mm) Length	S(mm) Etch Depth	m6	h7
4	2,1	8	.203	+,012 to +,004	0 to -,012
5	3,1	8	.203	+,012 to +,004	0 to -,012
6	3,1	8	.203	+,012 to +,004	0 to -,012
8	4,4	10	.254	+,015 to +,006	0 to -,015
10	5,2	12	.3556	+,015 to +,006	0 to -,015
12	6,2	14	.3556	+,018 to +,007	0 to -,018
16	8,2	14	.3556	+,018 to +,007	0 to -,018
20	11	16	.3556	+,021 to +,008	0 to ,021

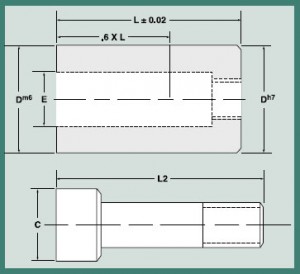

REPLACEMENT BODIES

D	L	12 Months	Years*	Days	Shifts	Blank
4	8	MBO4	AB04 __ __	DBO4	SB04	BLB04
5	8	MBO5	ABO5 __ __	DBO5	SB05	BLB05
6	8	MBO6	ABO6 __ __	DBO6	SB06	BLB06
8	10	MBO8	ABO8 __ __	DBO8	SB08	BLB08
10	12	MB10	AB10 __ __	DB10	SB10	BLB10
12	14	MB12	AB12 __ __	DB12	SB12	BLB12
16	14	MB16	AB16 __ __	DB16	SB16	BLB16
20	16	MB20	AB20 __ __	DB20	SB20	BLB20

* When ordering add the starting year required to the part number

REPLACEMENT INSERTS (with springs)

Arrow Only	Arrow & Year*	C	L2
AR04	AY04 __ __	2,1	8
AR05	AY05 __ __	3,1	8
AR06	AY06 __ __	3,1	8
AR08	AY08 __ __	4,4	10
AR10	AY10 __ __	5,2	12
AR12	AY12 __ __	6,2	14
AR16	AY16 __ __	8,2	14
AR20	AY20 __ __	11	16

* When ordering add the year required to the part number

REPLACEMENT SPRINGS (pkg of 5)

D(mm) Diameter	Cat. Number
4	RS04
5	RS05
6	RS06
8	RS08
10	RS10
12	RS12
16	RS16
20	RS20
