High Temperature Date Stamp

Material is 1.2344 Nitrided (insert) and Inconel 2.4669 (body)
Maximum working temperature is 450°C
Designed for tools which operate at high temperatures
Ideal for Zinc, Polyester, Bakelite and similar materials

Product Description

12 Months

Annual

Years

12 Months	Annual¹	Years²	A	B	C	D	No. of Years
FT.0847SF	FT.084712-__	FT.084705-__	8	12	4.7	11	5
FT.1267SF	FT.126712-__	FT.126708-__	12	16	6.7	12	8

When ordering add the year required to the part number (FT.084712-06)
When ordering add the start year to the part number(FT.084705-06)

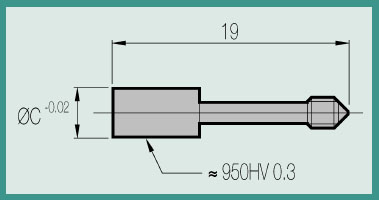

High Temperature Inserts

Material is 1.2344 Nitrided

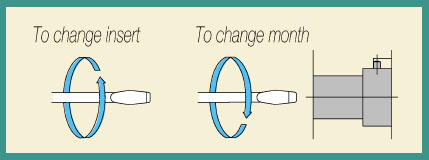

Insert changes can be done while the tool is still in the press

Arrow only	Arrow & Year1	C
IT.4719SF	IT.4719__	4.7
IT.6719SF	IT.6719__	6.7
