Recycle Inserts SPI Standards

Product Description

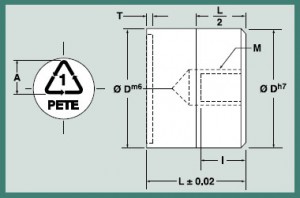

D L A M T I
8 10 5 M4 0,2 5
10 12 6 M5 0,3 7
12 14 7 M5 0,3 7
16 14 10 M6 0,3 7
20 16 12 M6 0,3 8



  • Standards with threaded holes
  • Based upon US SPI standards
  • Material: 420 Stainless; 1.4021; 46Hrc+/- 2
  • Maximum working temperature: 300F
Catalog Number D Recycling Number Abbreviation Polymer Name
MA-08-01 8 1 PETE Polyethelene, Terephthalate
MA-08-02 8 2 HDPE High Density Polyethelene
MA-08-03 8 3 PVC(or V) Polyvinyl Chloride
MA-08-04 8 4 LDPE Low-Density Polyethelene
MA-08-05 8 5 PP Polypropelene
MA-08-06 8 6 PS Polystyrene
MA-08-07 8 7 “OTHER” All other resins
MA-08-00 8 N/A N/A Blank
MA-10-01 10 1 PETE Polyethelene, Terephthalate
MA-10-02 10 2 HDPE High Density Polyethelene
MA-10-03 10 3 PVC(or V) Polyvinyl Chloride
MA-10-04 10 4 LDPE Low-Density Polyethelene
MA-10-05 10 5 PP Polypropelene
MA-10-06 10 6 PS Polystyrene
MA-10-07 10 7 “OTHER” All other resins
MA-10-00 10 N/A N/A Blank
MA-12-01 12 1 PETE “Polyethelene, Terephthalate”
MA-12-02 12 2 HDPE High Density Polyethelene
MA-12-03 12 3 PVC(or V) Polyvinyl Chloride
MA-12-04 12 4 LDPE Low-Density Polyethelene
MA-12-05 12 5 PP Polypropelene
MA-12-06 12 6 PS Polystyrene
MA-12-07 12 7 “OTHER” All other resins
MA-12-00 12 N/A N/A Blank
MA-16-01 16 1 PETE Polyethelene, Terephthalate
MA-16-02 16 2 HDPE High Density Polyethelene
MA-16-03 16 3 PVC(or V) Polyvinyl Chloride
MA-16-04 16 4 LDPE Low-Density Polyethelene
MA-16-05 16 5 PP Polypropelene
MA-16-06 16 6 PS Polystyrene
MA-16-07 16 7 “OTHER” All other resins
MA-16-00 16 N/A N/A Blank
MA-20-01 20 1 PETE Polyethelene, Terephthalate
MA-20-02 20 2 HDPE High Density Polyethelene
MA-20-03 20 3 PVC(or V) Polyvinyl Chloride
MA-20-04 20 4 LDPE Low-Density Polyethelene
MA-20-05 20 5 PP Polypropelene
MA-20-06 20 6 PS Polystyrene
MA-20-07 20 7 “OTHER” All other resins
MA-20-00 20 N/A N/A Blank
