Guided Ejection Support Pillars Metric

Product Description

D

C

M

B

d

S

CATALOG NUMBER

L=36

L=46

L=56

L=76

L=96

L=116

L=136

L=156

24

15

9

9

14

7

SSP-
24×36

SSP-
24×46

SSP-
24×56

SSP-
24×76

SSP-
24×96

36

18

11

11

18

9

SSP-
36×46

SSP-
36×56

SSP-
36×76

SSP-
36×96

SSP-
36×116

SSP-
36×136

48

20

13

13

20

10

SSP-
48×76

SSP-
48×96

SSP-
48×116

SSP-
48×136

SSP-
48×156

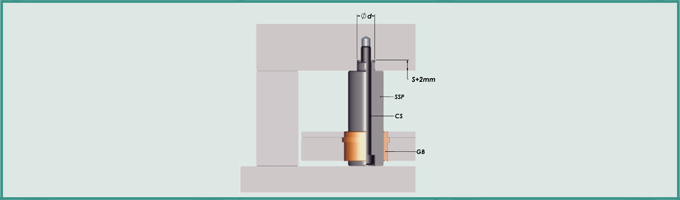

All ‘SSP’ guided ejection support pillars are case hardened to the same standards as DMS leader pins.
Assembly is suggested with metric capscrews (not supplied).
SSP24 series use M8 capscrew.
SSP36 series use M10 capscrew.
SSP48 series use M12 capscrew.

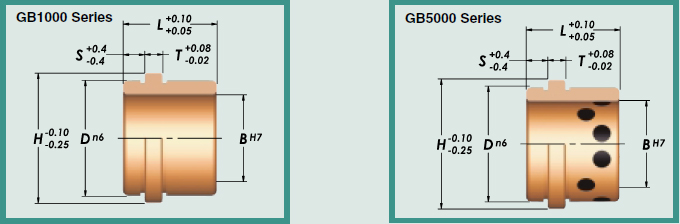

B	D	H	S	T	L	Part Number
24	32	36	6	5	26	GB1000	GB5000
36	44	48	6	5	30	GB1001	GB5001
48	58	62	10	6	40	GB1002	GB5002
