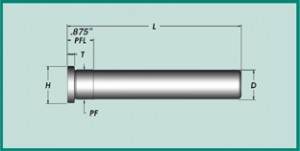

| General Dimensions and Tolerances | ||||
| Nominal Diameter |
D +.0000 -.0005 |
PF +.0005 -.0000 |
H +.000 -.010 |
T +.000 -.005 |
| 3/4 | .749 | .751 | .990 | 3/16 |
| 7/8 | .874 | .876 | 1.115 | 1/4 |
| 1″ | .999 | 1.001 | 1.240 | 1/4 |
| 1-1/4 | 1.249 | 1.251 | 1.490 | 5/16 |
| L | D=3/4″ | D=7/8″ | D=1″ | D=1-1/4″ | L |
| Cat. No | Cat. No | Cat. No | Cat. No | ||
| 4-1/4 | 1005-GLP | 1104-GLP | 1203-GLP | 1303-GLP | 4-1/4 |
| 4-3/4 | 1006-GLP | 1105-GLP | 1204-GLP | 1304-GLP | 4-3/4 |
| 5-1/4 | 1007-GLP | 1106-GLP | 1205-GLP | 1305-GLP | 5-1/4 |
| 5-3/4 | 1008-GLP | 1107-GLP | 1206-GLP | 1306-GLP | 5-3/4 |
| 6-1/4 | 1009-GLP | 1108-GLP | 1207-GLP | 1307-GLP | 6-1/4 |
