Round Tapered Interlocks

Product Description

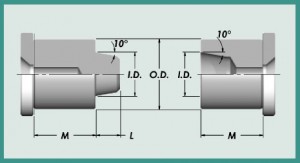

DMS round tapered interlocks provide positive alignment of cavities and cores.
Extra grind stock is provided at the back of both male and female for positive fitting

FEMALE
O.D. +.0000 -.0005	I.D.	TAP SIZE	M +.010 +.015	Catalog Number
1/2	5/16	10-24	11/16	FTL050-11
			7/8	FTL050-14
			1-3/16	FTL050-19
			1-3/8	FTL050-22
3/4	1/2	1/4-20	11/16	FTL075-11
			7/8	FTL075-14
			1-3/16	FTL075-19
			1-3/8	FTL075-22
1"	5/8	1/4-20	11/16	FTL100-11
			7/8	FTL100-14
			1-3/16	FTL100-19
			1-3/8	FTL100-22
1-1/2	1"	5/16-18	1-1/8	FTL150-18
			1-3/8	FTL150-22
			1-5/8	FTL150-26
2"	1-1/2	5/16-18	1-1/8	FTL200-18
			1-3/8	FTL200-22
			1-5/8	FTL200-26

MALE
O.D. +.0000 -.0005	I.D.	L	TAP SIZE	M +.010 +.015	Catalog Number
1/2	5/16	1/4	10-24	11/16	MTL050-11
				7/8	MTL050-14
				1-3/16	MTL050-19
				1-3/8	MTL050-22
3/4	1/2	9/32	1/4-20	11/16	MTL075-11
				7/8	MTL075-14
				1-3/16	MTL075-19
				1-3/8	MTL075-22
1"	5/8	11/32	1/4-20	11/16	MTL100-11
				7/8	MTL100-14
				1-3/16	MTL100-19
				1-3/8	MTL100-22
1-1/2	1"	1/2	5/16-18	1-1/8	MTL150-18
				1-3/8	MTL150-22
				1-5/8	MTL150-26
2"	1-1/2	1/2	5/16-18	1-1/8	MTL200-18
				1-3/8	MTL200-22
				1-5/8	MTL200-26

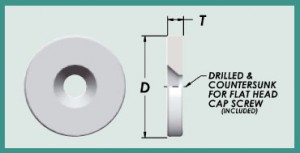

Spacer Plates

O.D.	D	T	Screw Size	Catalog Number
1/2	11/16	3/16	10-24	SP050
3/4	1"	3/16	1/4-20	SP075
1"	1-3/16	3/16	1/4-20	SP100
1-1/2	1-11/16	1/4	5/16-18	SP150
2"	2-3/16	1/4	5/16-18	SP200
