| A | L | O=5/32 | O=7/32 | O=9/32 |
| R=1/2 | R=1/2 | R=1/2 | ||
| 29/32 | 2-7/32 | UV239512 | UV239712 | UV239912 |
| 1-13/32 | 2-23/32 | UV255512 | UV255712 | UV255912 |
| 1-29/32 | 3-7/32 | UV339512 | UV339712 | UV339912 |
| 2-13/32 | 3-23/32 | UV355512 | UV355712 | UV355912 |
| 2-29/32 | 4-7/32 | UV439512 | UV439712 | UV439912 |

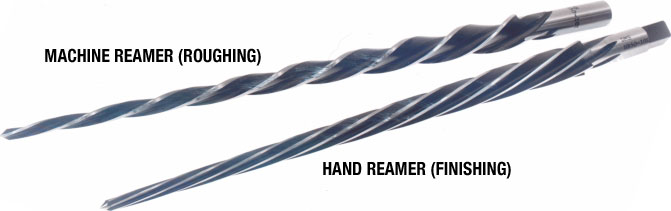

| HAND REAMERS | ||||||
| Catalog Number |
Flutes | Taper per foot |
Diameter Small End |
Diameter Large End |
Shank Diameter |
Flute Length |
| HR-50-06S | 4 | 1/2 | 7/64 | 3/8 | 3/8 | 6" |
| HR-50-10L | 6 | 1/2 | 13/64 | 5/8 | 5/8 | 10-1/2 |
| MACHINE REAMERS | ||||||
| Catalog Number |
Flutes | Taper per foot |
Diameter Small End |
Diameter Large End |
Shank Diameter |
Flute Length |
| MR-50-06S | 3 | 1/2 | 7/64 | 3/8 | 3/8 | 6" |
| MR-50-10L | 3 | 1/2 | 13/64 | 5/8 | 5/8 | 10-1/2 |
