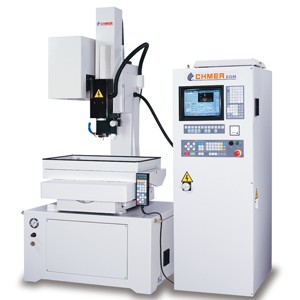

CHMER CNC Series H32C/CA

Product Description

CNC Drilling EDM Series

Carousel 20 tools AEC (auto electrode changer) for long hour production.

Features

Rotary Table (A axis) for indexing or contouring; integrating with Tilting Head can perform complex 3D machining.
Patented Conductive Spring applied in A axis protects transmission components such as bearing from being damaged by eroding power.
Double-Layer sealing and stainless body ensure 100% water-proof and anti-rust.

Specifications
Model	Unit	H32C/CA
Working Table	mm	600×300
Table Travels (XxY)	mm	350×250
Max. Work Piece (WxDxH)	mm	800x400x350
Max. Work Piece Weight	kg	180
Ram Servo Travel (Z1)/(W)	mm	340/380
Work Head Travel (Z2)/(Z)	mm	200/200
Guide Travel	mm	150/0
Electrode Dide	mm	¢0.2~¢3.0
Max. Length of Tube Electrode	mm	400
Distance between Spindle Platen to Work Table		3-350/25-230
Tank Capacity	L	90
Dielectric Fluid Type		water
Machine (WxDxH)	mm	2185x1875x2330
Net Weight	kg	800
