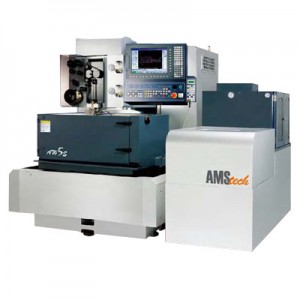

Linear motor drive system features free backlash, consistent precision and long term reliability. AMS applied this cutting edge technology and build the linear motor system on the rigid casting base of AW series Wire EDM to enable the superiority on part’s profile, surface quality and fewer skim cut required.
Linear motor drives with precision flass scales provide fully closed loop system for high accuracy positioning and part shape definition versus ball screw drives. Quick response, low vibration and virtually zero backlash results in better accuracy and finish with fewer passes.
| Model | AW5SL | |
| X,Y Travel | 560 x 360 (mm) | 22 x 14.2 (inch) |
| U,V,Z Travel | 100 x 100 x 300 (mm) | 3.9 x 3.9 x 11.8 (inch) |
| Max. Size of Work-Piece | L950 x W650 x H300 (mm) | 37.4 x 25.6 x 11.8 (inch) |
| Max. Weght of Work-Piece | 500 Kg | 1100 lb |
| Max. X, Y Rapid Traverse | 800 mm/min | 31.5 in/min |
| Motot Drive System | AC Servo Motor/Linear Motor (OPT.) 17bit/130000 pulse |
|
| Wire Diameters | ¢0.15~0.3 (mm) | 0.004~0.012 (inch) |
| Max. Wire Feed | 300 mm/sec. | 11.8 in/sec |
| Wire Tension | 200~2500 (gf) | 0.44~5.52 lb |
| Taper Angle | ±21°/100 mm (DA+DB=15mm) | ±21°/4.33 inch (DA+DB=0.6inch) |
| Layout (W x D x H) | 2675 x 2717 x 2125 (mm) | 105.3 x 107 x 83.7 (inch) |
| N. W. (Incl.Power Supply) | 5200 Kg +320Kg | 11464+705 lb |
