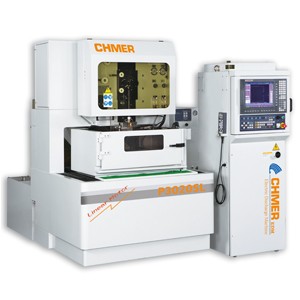

CHMER P3020SL Submerged

Product Description

Precision Wire Cut EDM for P Series

Advanced rigidity and thermal balanced structure
The machine has been designed with a gantry type base frame through 3D simulation designing and FEM optimizing process.
With optimum structure and reinforced ribs to secure the perfect rigidity and highly accurate machining.

Specifications
Model	Unit	P3020SL SUBMERGED TYPE
X axis	mm	300
Y axis	mm	200
U axis	mm	60
V axis	mm	60
Z axis	mm	150
Max.size of working piece (W×D×H)	mm	500×300×145
Max.weight of working piece	kgw	100
X,Y feed rate	mm/min	Max.800
Motor System (axis)	—	X,Y : Linear Moto
Wire diameter range	mm	Φ0.15-0.3 (Φ0.25)
Max.wire feed rate	mm/sec	300
Wire tension	gf	300-2500
Max. taper angle(*) / workpiece thickness	mm	±21°/100mm (Wicle Angled Nozzle DA+DB=15mm)
Outside dimension (W×D×H)	mm	2200×2470×2100
N.W.	kgw	2800
