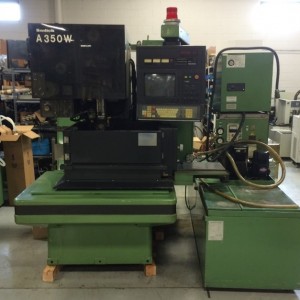

1993 Sodick A350W

Product Description

SPECIFICATIONS: Machine Tool:

Maximum work piece dimensions at machining with flushing 27.5″ W x 19.6″ D x 10.2″ H
Maximum work piece dimensions at submerged machining 27.5″ W x 19.6″ D x 7.1″ H
Maximum work piece weight with flushing 1,554 Lbs.
Maximum work piece weight at submerged machining 1,221 Lbs.
X-axis travel 13.7″
Y-axis travel 9.8″
Z-axis travel, manual 8.66″
Auxiliary table travel (U-axis x V-axis) 2.7″ x 2.7″
Standard taper plus or minus 15 degrees per 100 mm thickness
Wire diameter range 0.004″ to 0.012″
Wire tension 0.44 to 6.2 Lb.
Maximum wire feed speed rate 9.8 inches per second
Dimensions of machine tool (W x D x H) 66.3″ x 92.1″ x 81.4″
Weight of machine tool 7,111 Lbs.

Dielectric Fluid Supply Tank:

Equipped With:
